LOC INTERSTAGE COUPLERS

Price: $32.05
  In Stock 0
INTERSTAGE COUPLERS
Product ID LOCIS-3000-2.1
Manufacturer LOC / PML
  •    Info
  •    Reviews

INTERSTAGE COUPLERS
Interstage Couplers are used to house staging timers and to connect the upper and lower stages together. The Interstage 3000, the latest version from PML, is used in our two-stage rocket kits but is now available for scratch builders designing their own staged rockets. Using an IS3000 system from PML is a quick, simple solution to an often difficult design problem. Interstage 3000 kits are ready to ship in 2.1, 2.5, 3.0 and 3.9" diameters.

To use an IS-3000 system, the booster needs 3" (regardless of diameter) at the top, just like a regular rocket would for a payload coupler or nosecone shoulder. The sustainer (upper stage) also requires 3" clear at the bottom. Click here for a PDF file that illustrates design requirements for the upper stage. Click here for a file that shows design requirements for the Terrier IS3000.



  • Easy to assemble
  • Easy to prep
  • The standardized design allows easy timer swapping into other Interstage 3000 equipped rockets.
  • Designed to be used with the PML AccuFire Staging Timer on the Electronics Page. Can also be used with Transolve ST-2b timer.

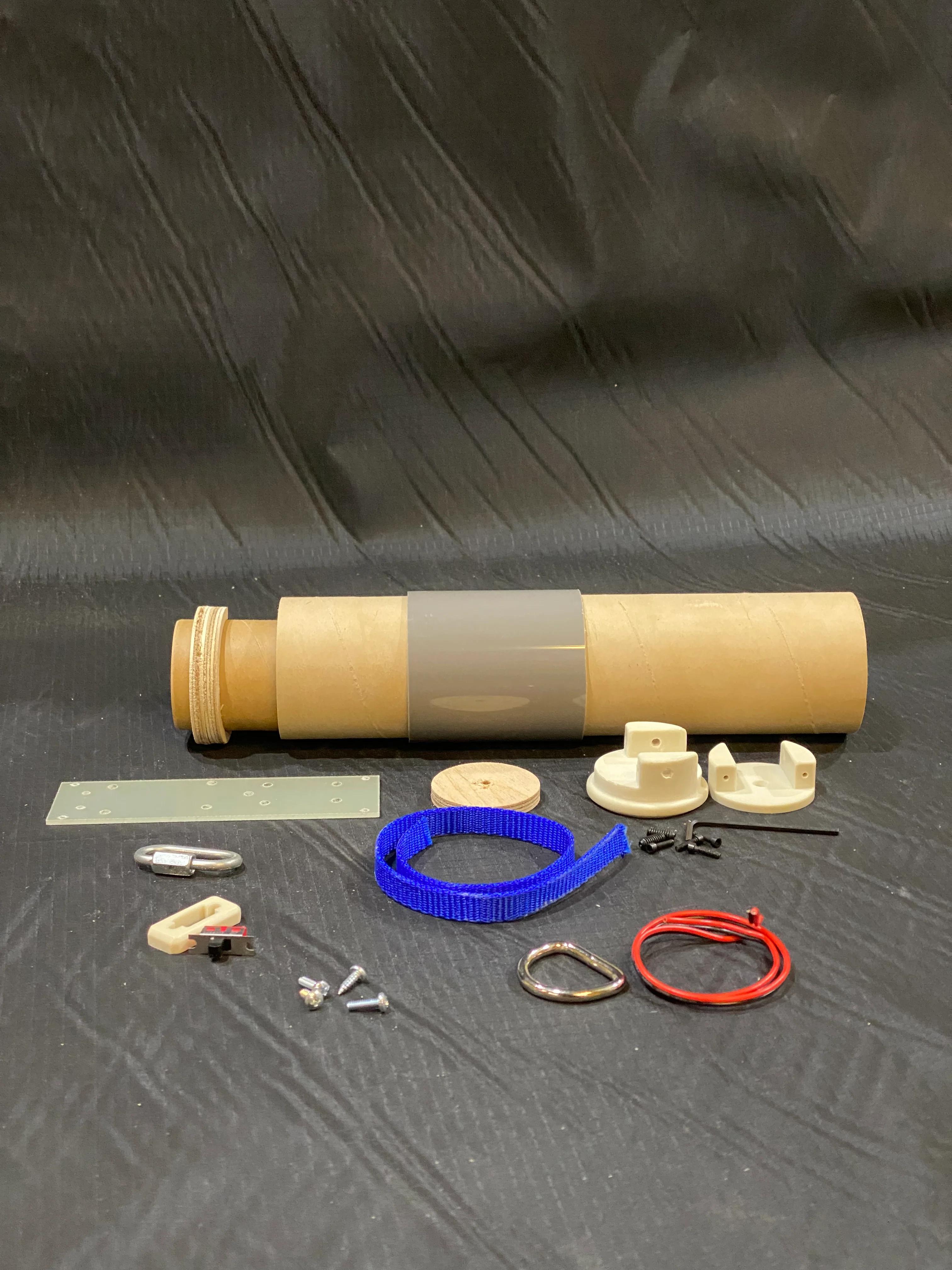

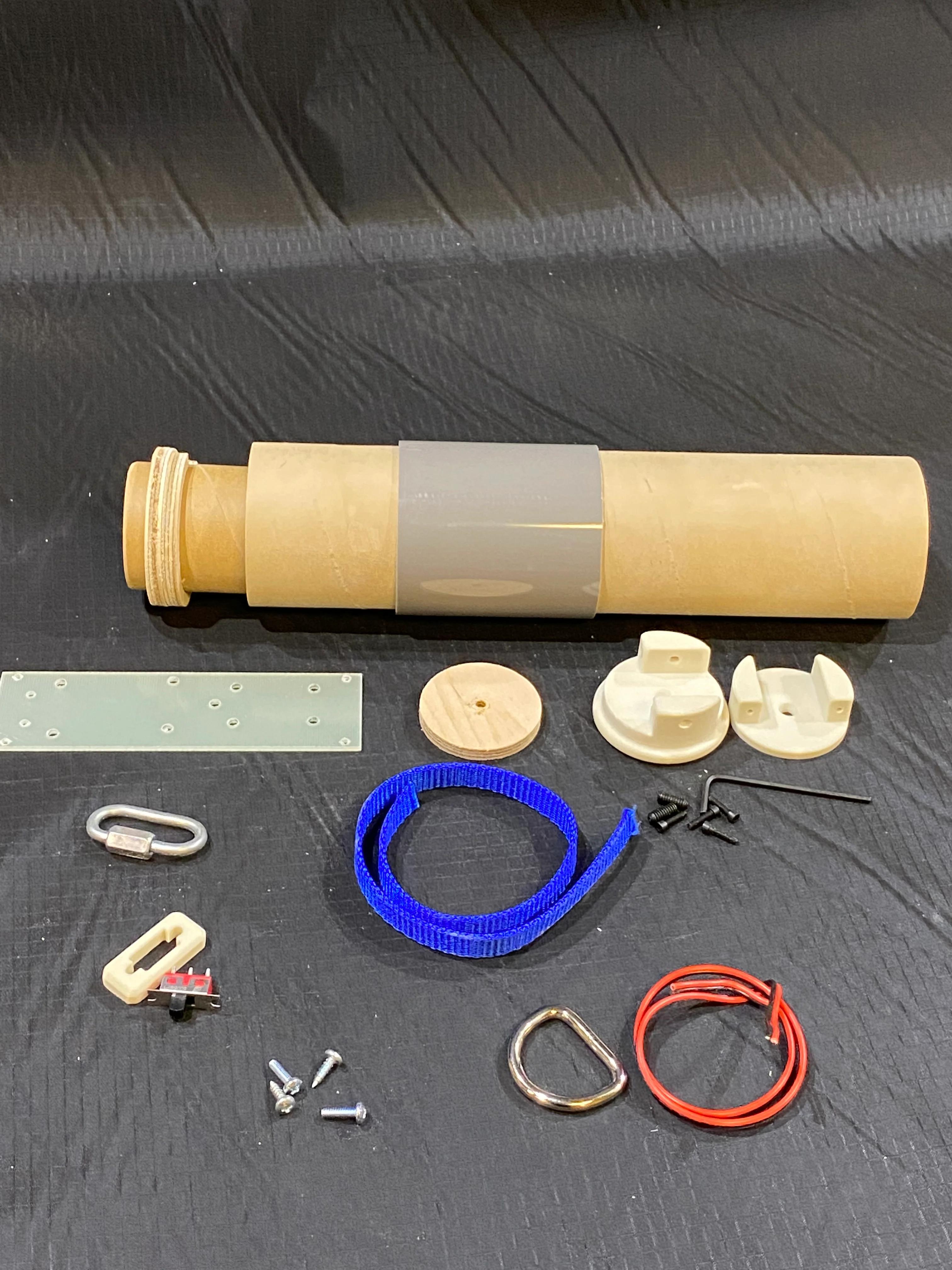

  • Includes everything shown in drawing "Interstage 3000 System" above, except timer.
  • Easy to follow, detailed instructions

Click here for the kit instructions in PDF format; 365kb

Also available below are Fore and Aft mounts for the PML AccuFire Timer to allow scratch builders the simplicity of mounting the AccuFire in a 38mm tube as shown above.
